20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Frequency | 50 Hz ± 5% |
| Type | Ring Type / Window,Resin Cast CT |
| Country of Origin | India |
| Click to view more | |
Product Details
Standards
IS: 2705 (Part I–IV) / IEC 61869-2
System Voltage
1.1 kV (LT Application)
Ratio
300/5 A
Core
Single Core
Accuracy Class
Class 1
Burden
5–10 VA
Window / Inner Diameter
45 mm
Outer Dimensions (L×W×H)
90 × 90 × 40 mm
Continuous Thermal Current
1.2 × Rated Current
Short Time Current
As per IS: 2705 (e.g., 25 × rated current for 1 sec)
Instrument Security Factor (ISF)
≤ 5
Construction
Resin / Epoxy encapsulated, flame-retardant housing
Terminals
Electrolytic copper, screw-type with protective terminal cover
Mounting
Busbar / Cable pass-through
Insulation
Class E / Class B
Ambient Temperature
–10°C to +55°C
Service Conditions
Indoor, suitable for tropical climate
Markings
As per IS: 2705 (Ratio, VA, Class, Serial No., Year, IS marking)
Routine & Type Tests
As per IS: 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)
Payment Terms
T/T
Delivery Time
7 days
Packaging Details
as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs

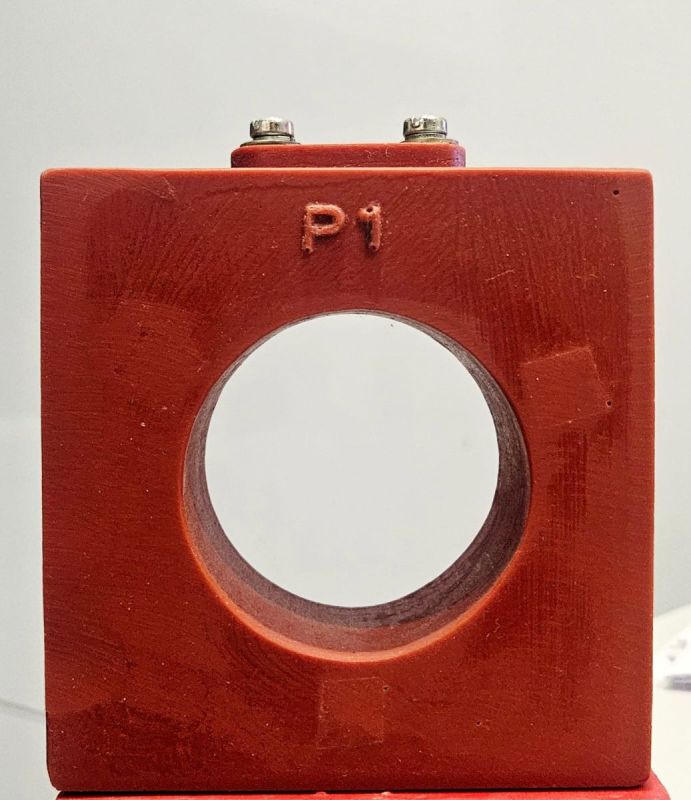

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality 300 A Resin Cast Ring Type Current Transformer originating from India. This transformer is designed for LT applications with a system voltage of 1.1 kV and a frequency of 50 Hz ± 5%. It complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, offering a ratio of 300/5 A and an accuracy class of Class 1. The single-core transformer features a 45 mm inner diameter window, with a burden of 5–10 VA. Trust in our reliable and efficient product for your current measurement needs.
