Square Current Transformers
Leading Manufacturers, Exporters, Wholesaler and Trader of PSQ-30(S) 100A Square Current Transformer, PSQ-30(S) 150A Square Current Transformer, PSQ-30(S) 200A Square Current Transformer, PSQ-30(S) 30A Square Current Transformer, PSQ-30(S) 60A Square Current Transformer, PSQ-40 200A Square Current Transformer, PSQ-40 250A Square Current Transformer, PSQ-40 400A Square Current Transformer, PSQ-60 400A Square Current Transformer, PSQ-60 600A Square Current Transformer and PSQ-80 800A Square Current Transformer from Jaipur.

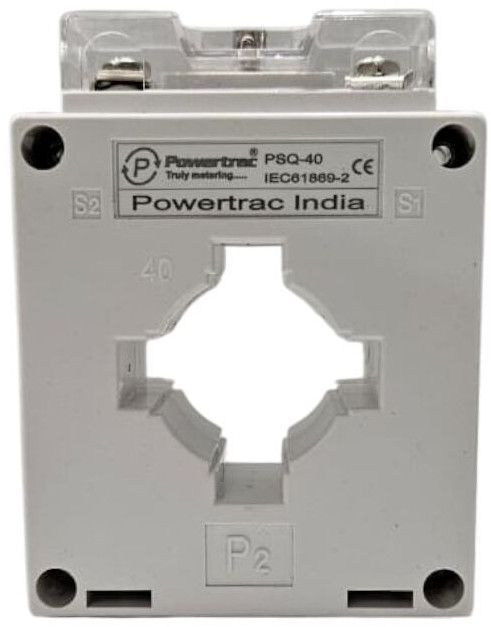

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog |  View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 100A |
| Max. Current (continuous) | 120A |
| Current Ratio | 100A/5A |
| Accuracy | 0.5% |
| Burden | 2.5VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min. |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 150A |
| Max. Current (continuous) | 180A |
| Current Ratio | 150A/5A |
| Accuracy | 0.5% |
| Burden | 2.5VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.

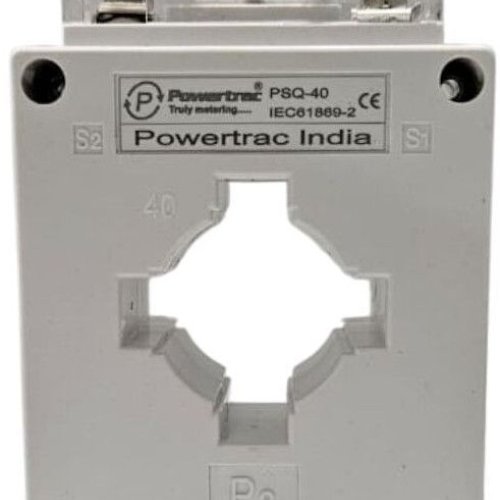

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 200A |
| Max. Current (continuous) | 240A |
| Current Ratio | 200A/5A |
| Accuracy | 0.5% |
| Burden | 2.5VA |
| Phase Error At Rated Current Range | ≦1.5" |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 30A |
| Max. Current (continuous) | 36A |
| Current Ratio | 30A/5A |
| Accuracy | 0.5% |
| Burden（VA） | 1.5VA |
| Phase Error At Rated Current Range | ≦1.5" |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 60A |
| Max. Current (continuous) | 72A |
| Current Ratio | 60A/5A |
| Accuracy | 0.5% |
| Burden | 1.5VA |
| Phase Error At Rated Current Range | ≦1.5" |
| Storage Temperature Range | -45~75 C |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ mn |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 200A |
| Max. Current (continuous) | 240A |
| Current Ratio | 200A/5A |
| Accuracy | 0.5% |
| Burden | 2.5VA |
| Phase Error At Rated Current Range | ≦1.5" |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 250A |
| Max. Current (continuous) | 300A |
| Current Ratio | 250A/5A |
| Accuracy | 0.5% |
| Burden | 2.5VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65 C |
| Rated Primary Current(Amp.) 50/60Hz | 300A |
| Max. Current (continuous) | 360A |
| Current Ratio | 300A/5A |
| Accuracy | 0.5% |
| Burden | 5VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 400A |
| Max. Current (continuous) | 480A |
| Current Ratio | 400A/5A |
| Accuracy | 0.5% |
| Burden | 5VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 600A |
| Max. Current (continuous) | 720A |
| Current Ratio | 600A/5A |
| Accuracy | 0.5% |
| Burden | 5VA |
| Phase Error At Rated Current Range | ≦1.5" |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog | View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 800A |
| Max. Current (continuous) | 960A |
| Current Ratio | 600A/5A |
| Accuracy | 0.5% |
| Burden | 10 VA |
| Phase Error At Rated Current Range | ≦1.5˚ |
| Storage Temperature Range | -45~75℃ |
| Dielectric Withstanding Voltage(Hi-pot) | 3.5KV/1mA/1min |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
