20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here To View Catalog |  View |
| Operating Temperature Range | -40~65℃ |
| Rated Primary Current(Amp.) 50/60Hz | 400A |
| Click to view more | |
Product Details
Max. Current (continuous)
480A
Current Ratio
400A/5A
Accuracy
0.5%
Burden
5VA
Phase Error At Rated Current Range
≦1.5˚
Storage Temperature Range
-45~75℃
Dielectric Withstanding Voltage(Hi-pot)
3.5KV/1mA/1min
Insulation Resistance
DC500V/100MΩ min
Temperature Error of Current Ratio
<50ppm/K

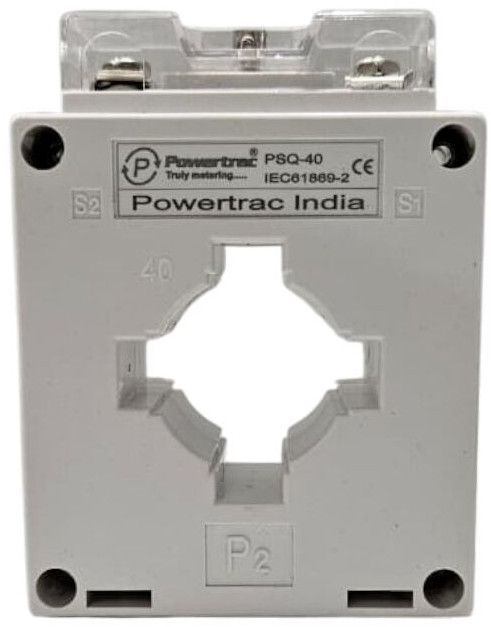

PSQ series current transformers are suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in AC power systems. Various inner diameters are available for different cables and busbars. The secondary output terminal is designed to prevent electricity theft. The series has a primary input range of 5 A - 6 0 0 0 A and a secondary output of 5 A or 1 A.
