20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Standard | IS: 1248 / IEC 60051 |
| Frequency | 50 Hz ± 5% |
| Click to view more | |
Product Details
Insulation Class
Class E / B
Operating Temperature
–10°C To +55°C
Type
1 Phase Ammeter
System Voltage
230 V AC
Rated Current
5–60 A (as per requirement)
Accuracy Class
Class 1.0
Burden
< 2 VA
Dimensions (L × W × H)
96 × 96 mm panel size
Display
Analog pointer with scale, or optional digital display
Terminals
Screw-type terminals, copper contacts
Mounting
Panel flush mounting
Humidity
Up to 95% RH non-condensing
Housing
Polycarbonate / Flame-retardant plastic, IP54 front
Mechanical Durability
As per IS 1248
Overload Withstand
2 × rated current continuous, 10 × rated current for 1 second
Security Features
Sealing provisions, tamper resistant terminals
Power Consumption
< 2 VA
Marking
ISI Marking, Accuracy Class, Manufacturer Name, Serial Number, Year of Manufacture
Payment Terms
T/T
Delivery Time
7 days
Packaging Details
as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs

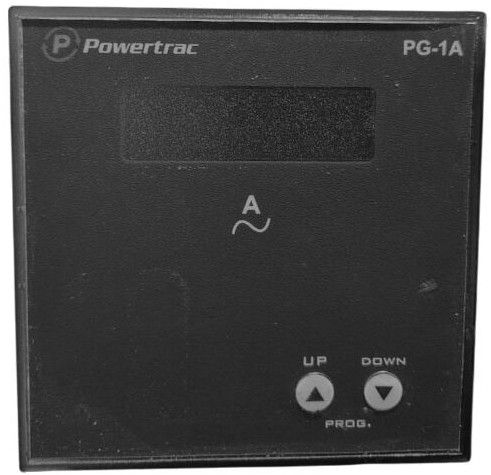

We offer the Ammper Digital Panel Meter, a Digital Meter (Ammeter) proudly made in India. This panel/flush mounted meter features a 96 × 96 mm size, 1-Line Bright LED/LCD display, and Class 0.5 accuracy. It measures Voltage (Phase & Line), Current (Phase & Neutral), Frequency, Active Power (kW), Reactive Power, Energy (kWh Import/Export/Net, kVArh Import/Export, kVAh Total, MD), and Harmonics (THD Voltage & THD Current up to 31st harmonic). Ideal for 3-phase systems, this meter is perfect for manufacturers, exporters, suppliers, and traders seeking reliable instrumentation.
