Digital Panel Meters
Leading Manufacturers, Exporters, Wholesaler and Trader of Kwh Digital Panel Meter, Mfm Digital Panel Meter, Micro Digital Panel Meter and Vif Digital Panel Meter from Jaipur.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Body Material | Plastic |
| Color | Grey |
| Automatic Grade | Manual |
| Power Source | Electric |
| Application | Panel Monitor |
| Certification | CE Certified |
| Instrument Type | KWH Meter |
| Mounting | Panel / Flush mounted |
| Size | 96 × 96 mm (DIN standard) |
| Display | 3-Line Bright LED / LCD, 4 digits, Auto-scroll / Manual selection |
| Accuracy Class | Class 0.5 (IEC 62053-22 / IS standards) |
| Measured Parameters | - Voltage (Phase & Line) - Current (Phase & Neutral) - Frequency - Active Power (kW) - Reactive Powe |
| Energy Measurement | - kWh Import / Export / Net - kVArh Import / Export - kVAh Total - MD (Maximum Demand) |
| Harmonics | THD Voltage & THD Current up to 31st harmonic |
| Input Voltage | 3 Phase, 4 Wire, 415 V L-L / 230 V L-N (50% – 120% of nominal) |
| Input Current | 1A / 5A CT programmable (5% – 120% of rated) |
| Frequency Range | 45 – 65 Hz |
| Auxiliary Supply | 230 V AC ±20% (Optional: 110 V AC / DC) |
| Power Consumption | < 5 VA |
| Processing | True RMS, DSP / Microcontroller based |
| Communication | Optional RS485 port, MODBUS-RTU protocol |
| DG Reading Feature | Compatible for Single Source and Dual Source DG measurement (Import / Export registers) |
| Environmental Conditions | Operating Temp: –10°C to +55°C - Storage Temp: –20°C to +70°C - Humidity: ≤ 95% RH (non-condensing) |
| Enclosure & Protection | - Housing: Flame retardant ABS / Polycarbonate - Front: IP54, Rear: IP20 |
| Standards Compliance | IEC 62053-22 (Accuracy), IEC 61010-1 (Safety), IEC 61326 (EMC) |
| Payment Terms | T/T |
| Packaging Details | as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs |

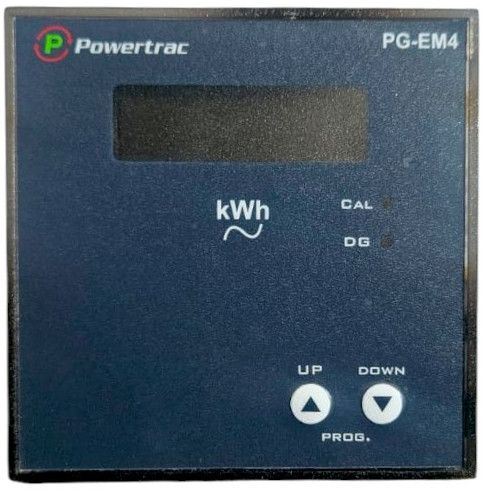

We offer the KWH Digital Panel Meter, a Kwh Digital Meter (MFM) proudly made in India. This panel/flush mounted meter features a 96 × 96 mm size, single-Line Bright LED/LCD display, and Class 0.5 accuracy. It measures Kwh (Phase & Line), Current (Phase & Neutral), Frequency, Active Power (kWH), Reactive Power, Energy (kWh Import/Export/Net, kVArh Import/Export, kVAh Total, MD), and Harmonics (THD Voltage & THD Current up to 31st harmonic). Ideal for single-phase systems, this meter is perfect for manufacturers, exporters, suppliers, and traders seeking reliable instrumentation.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Instrument Type | Micro Multi-Function Digital Meter (MFM) |
| Mounting | Panel / Flush mounted |
| Size | 96 × 96 mm (DIN standard) |
| Display | 3-Line Bright LED / LCD, 4 digits, Auto-scroll / Manual selection |
| Accuracy Class | Class 0.5 (IEC 62053-22 / IS standards) |
| Measured Parameters | - Voltage (Phase & Line) - Current (Phase & Neutral) - Frequency - Active Power (kW) - Reactive Powe |
| Energy Measurement | - kWh Import / Export / Net - kVArh Import / Export - kVAh Total - MD (Maximum Demand) |
| Harmonics | THD Voltage & THD Current up to 31st harmonic |
| Input Voltage | 3 Phase, 4 Wire, 415 V L-L / 230 V L-N (50% – 120% of nominal) |
| Input Current | 1A / 5A CT programmable (5% – 120% of rated) |
| Frequency Range | 45 – 65 Hz |
| Auxiliary Supply | 230 V AC ±20% (Optional: 110 V AC / DC) |
| Power Consumption | < 5 VA |
| Processing | True RMS, DSP / Microcontroller based |
| Communication | Optional RS485 port, MODBUS-RTU protocol |
| DG Reading Feature | Compatible for Single Source and Dual Source DG measurement (Import / Export registers) |
| Environmental Conditions | - Operating Temp: –10°C to +55°C - Storage Temp: –20°C to +70°C - Humidity: ≤ 95% RH (non-condensing |
| Enclosure & Protection | - Housing: Flame retardant ABS / Polycarbonate - Front: IP54, Rear: IP20 |
| Standards Compliance | IEC 62053-22 (Accuracy), IEC 61010-1 (Safety), IEC 61326 (EMC) |
We offer the Mfm Digital Panel Meter, a Micro Multi-Function Digital Meter (MFM) proudly made in India. This panel/flush mounted meter features a 96 × 96 mm size, 3-Line Bright LED/LCD display, and Class 0.5 accuracy. It measures Voltage (Phase & Line), Current (Phase & Neutral), Frequency, Active Power (kW), Reactive Power, Energy (kWh Import/Export/Net, kVArh Import/Export, kVAh Total, MD), and Harmonics (THD Voltage & THD Current up to 31st harmonic). Ideal for 3-phase systems, this meter is perfect for manufacturers, exporters, suppliers, and traders seeking reliable instrumentation.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Instrument Type | Micro |
| Mounting | Panel / Flush mounted |
| Size | 96 × 96 mm (DIN standard) |
| Display | 3 Line Bright LED / LCD, 4 digits, Auto-scroll / Manual selection |
| Accuracy Class | Class 0.5 (IEC 62053-22 / IS standards) |
| Measured Parameters | - Voltage (Phase & Line)- Current (Phase & Neutral)- Frequency- Active Power (kW)- Reactive Power |
| Energy Measurement | - kWh Import / Export / Net- kVArh Import / Export- kVAh Total- MD (Maximum Demand) |
| Harmonics | THD Voltage & THD Current up to 31st harmonic |
| Input Voltage | 3 Phase, 4 Wire, 415 V L-L / 230 V L-N (Range: 50% – 120% of nominal) |
| Input Current | 1A / 5A CT programmable (Range: 5% – 120% of rated) |
| Frequency Range | 45 – 65 Hz |
| Auxiliary Supply | 230 V AC ±20% (Optional: 110 V AC / DC) |
| Power Consumption | < 5 VA |
| Processing | True RMS, DSP / Microcontroller based |
| Communication | Optional RS485 port, MODBUS-RTU protocol |
| DG Reading Feature | Compatible for Single Source and Dual Source DG measurement (Import / Export registers) |
| Environmental Conditions | - Operating Temp: –10°C to +55°C- Storage Temp: –20°C to +70°C- Humidity: ≤ 95% RH (non-condensing) |
| Enclosure & Protection | - Housing: Flame retardant ABS / Polycarbonate- Front: IP54, Rear: IP20 |
| Standards Compliance | IEC 62053-22 (Accuracy), IEC 61010-1 (Safety), IEC 61326 (EMC) |
We are a leading Manufacturer, Exporter, Supplier, and Trader of the Micro Digital Panel Meter originating from India. This Micro instrument, designed for panel or flush mounting with a size of 96 × 96 mm (DIN standard), features a 3 Line Bright LED / LCD display for clear visibility. It boasts an Accuracy Class of 0.5 (IEC 62053-22 / IS standards) and measures various parameters including Voltage, Current, Frequency, Active Power, Reactive Power, Energy Consumption, Maximum Demand, and Harmonics up to the 31st harmonic. Ideal for 3 Phase systems, this versatile meter is a reliable choice for precise measurements.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Automatic Grade | Automatic |
| Power Source | Electric |
| Application | Indsustrial Usage |
| Certification | CE Certified |
| Display Type | Digital |
| Warranty | 1Year |
| Country of Origin | India |
1. Instrument Type :
- Panel Mounted Digital VIF Meter
2. Size :
- 96 × 96 mm (DIN standard)
3. Mounting :
- Flush / Panel Mounted
4. Display :
- 3 Line LED / LCD Digital Display
- Parameters displayed simultaneously
- Digit height: ≥ 14 mm
- Color: Red / Green (as applicable)
5. Accuracy Class :
- Class 1.0 (as per IEC 62053 / IS standards)
6. Measuring Parameters:
- Current (I) – per phase & average
- Voltage (V) – per phase & average
- Frequency (Hz)
- Active Power (kW)
- Apparent Power (kVA)
- Reactive Power (kVAr)
- Power Factor (PF) – per phase & average
7. Input Voltage Range:
- 3 Phase, 4 Wire (L-L: 415V, L-N: 230V)
- Range: 50 – 120% of nominal voltage
8. Input Current Range:
- Via CT input (5A / 1A programmable)
- Range: 5% to 120% of nominal
9. Frequency Range :
- 45 – 65 Hz
10. Power Supply:
- Auxiliary Supply: 230V AC ±20% / 110V AC (as specified)
- Burden: < 5 VA
11. Sampling & Processing:
- True RMS Measurement
- Microcontroller based
12. Environment Conditions:
- Operating Temperature: –10°C to +55°C
- Humidity: up to 95% RH non-condensing
13. Standards Compliance:
- IEC 62053-21 / IEC 62053-22 for accuracy
- IEC 61010-1 for safety
- IEC 61326 for EMC compliance
14. Housing & Protection:
- Enclosure: ABS / Polycarbonate, flame retardant
- Protection: IP54 (front), IP20 (rear)
- Terminals: Screw type
15. Optional Features (if required):
- RS485 Communication (Modbus RTU protocol)
- Data logging / Memory function
- THD (Harmonic) Measurement
