Potential Transformers
Leading Manufacturers, Exporters, Wholesaler and Trader of Ammeter-Voltmeter Combined Single Phase Direct Type (Model Pgav – 72×72 Mm, up to 60A), Indoor Potential Transformer and Potential Control Transformer from Jaipur.
20 Piece (MOQ)
Get Best Price| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Color | Black |
| Frequency | 50 Hz ± 5% |
| Country of Origin | India |
| Primary Voltage Options | - 415 V (Single Phase) - 415 V (Two Phase) - 800 V (Three Phase, Star or Delta) |
| Solar Application | Control Transformer 800 V input, output as per requirement (typically 230 V / 110 V) |
| Secondary Voltage Options | 230 V - 110 V |
| Vector Group / Connection | - Single Phase: 415 / 230 V - Two Phase: 415 / 110 V - Star–Delta: 800 / 230 V - Delta–Star: 800 / 1 |
| Accuracy Class (for PT) | Class 0.5 / Class 1.0 (as per requirement) |
| Burden (for PT) | 25 VA / 50 VA (as specified) |
| Insulation Level | As per IS / IEC standards |
| Construction | Resin Cast / Dry Type, Vacuum Impregnated |
| Terminals | Electrolytic copper, screw / stud type with cover |
| Cooling | Natural Air Cooled (AN) |
| Ambient Temperature | –10°C to +55°C |
| Mounting | Panel / Base mounting suitable |
| Enclosure Protection | IP 20 / IP 23 (as per requirement) |
| Service Conditions | Indoor, suitable for tropical climate |
| Markings | As per IS / IEC (Ratio, VA, Class, Serial No., Year, IS marking) |
| Routine & Type Tests | As per IS: 3156 (Polarity, Ratio, Burden, Accuracy, Dielectric, Insulation resistance, etc.) |
| Finishing | Polished |
| Standard | IS: 3156 / IEC 61869 |
| Feature | Easy To Use |
| System Voltage | 415 V / 800 V (as Applicable) |
| Application | Industrial |
We offer an SEO-friendly Ammeter-Voltmeter Combined Single Phase Direct Type (Model PGAV – 72×72 mm, up to 60A) designed for industrial use, with a frequency of 50 Hz ± 5% and system voltage options of 230 V as applicable. This transformer, meeting IS: 3156 / IEC 61869 standards, is proudly made in India and features a polished black finish. Easy to use, it comes with primary voltage options including 230 V (Single Phase), 230 V (Two Phase), and 800 V (Three Phase) for solar applications. As a Manufacturer, Exporter, Supplier, and Trader, we provide a reliable solution for your power control needs.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |

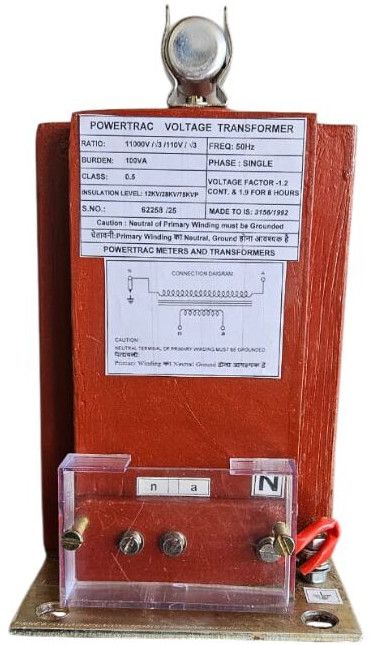

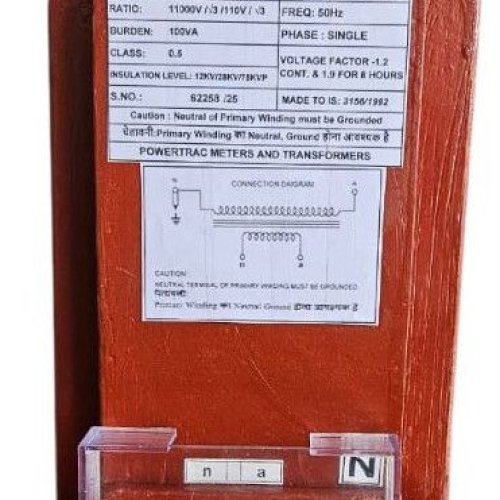

| Type | Resin Cast, Indoor Potential Transformer (PT) |
| Standard | IS: 3156 (Part I to IV) / IEC 61869-3 |
| System Voltage | 11 kV |
| Insulation Level | 12 kV / 28 kV / 75 kVp |
| Ratio | 11 kV / 110 V (√3), single-phase / three-phase (as specified) |
| Frequency | 50 Hz ± 5% |
| Connection | Star connected, secondary neutral brought out |
| Accuracy Class | 0.5s (for metering application) |
| Burden | 10 VA / 15 VA (or as specified) |
| Fuse | HT HRC fuse provided on primary side |
| Thermal Rating | Continuous 1.2 × rated voltage |
| Protection | Secondary side fuse provided |
| Construction | Epoxy Resin Cast, Vacuum castNon-hygroscopic, flame retardant |
| Mounting | Indoor, base-mounted |
| Terminals | Electrolytic copper with tin plating, suitable for lugs |
| Creepage Distance | As per IS / IEC standards |
| Ambient Temperature | –10°C to +50°C |
| Service Conditions | Indoor type, suitable for tropical conditions |
| Markings | As per IS: 3156 (Ratio, VA, Class, Serial No., Year, Standard) |
| Routine & Type Tests | As per IS: 3156 (Insulation, Ratio, Polarity, Burden, Accuracy, etc.) |
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Frequency | 50 Hz ± 5% |
| System Voltage | 415 V / 800 V (as Applicable) |
| Standard | IS: 3156 / IEC 61869 |
| Country of Origin | India |
| Primary Voltage Options | - 415 V (Single Phase) - 415 V (Two Phase) - 800 V (Three Phase, Star or Delta) |
| Secondary Voltage Options | 230 V - 110 V |
| Vector Group / Connection | - Single Phase: 415 / 230 V - Two Phase: 415 / 110 V - Star–Delta: 800 / 230 V - Delta–Star: 800 / 1 |
| Solar Application | Control Transformer 800 V input, output as per requirement (typically 230 V / 110 V) |
| Accuracy Class (for PT) | Class 0.5 / Class 1.0 (as per requirement) |
| Burden (for PT) | 25 VA / 50 VA (as specified) |
| Insulation Level | As per IS / IEC standards |
| Construction | Resin Cast / Dry Type, Vacuum Impregnated |
| Terminals | Electrolytic copper, screw / stud type with cover |
| Cooling | Natural Air Cooled (AN) |
| Ambient Temperature | –10°C to +55°C |
| Mounting | Panel / Base mounting suitable |
| Enclosure Protection | IP 20 / IP 23 (as per requirement) |
| Service Conditions | Indoor, suitable for tropical climate |
| Markings | As per IS / IEC (Ratio, VA, Class, Serial No., Year, IS marking) |
| Routine & Type Tests | As per IS: 3156 (Polarity, Ratio, Burden, Accuracy, Dielectric, Insulation resistance, etc.) |
| Payment Terms | T/T |
| Delivery Time | 7 days |
| Packaging Details | as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs |

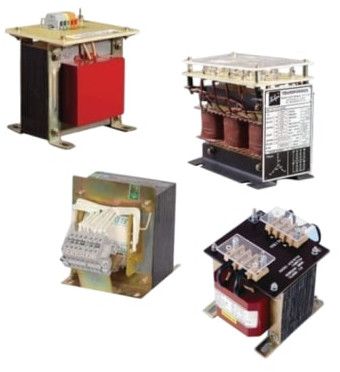

The Potential / Control Transformer is designed to step down voltage for metering, protection, and control conforms to IS: 3156 and IEC 61869 standards for reliable and accurate performance.Suitable for 415 V / 800 V systems, with primary and secondary options of 415 V / 230 V or 800 V / 110 V.The vector group configuration includes Star–Star (800/230 V) and Delta–Star (800/110 V).It operates at 50 Hz ±5% frequency with an accuracy class of 0.5 or 1.0 as required.The burden rating is 25 VA or 50 VA, depending on the application.The transformer is of resin cast / dry type vacuum impregnated construction.Terminals are made of electrolytic copper with protective covers for safety and durability.Designed for indoor use, it features IP20/IP23 protection and operates in –10°C to +55°C.Each unit undergoes routine and type tests as per IS: 3156 to ensure quality and performance.
