Product Details
Type

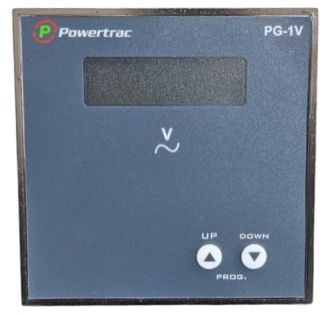

Digital Voltmeter (Panel Mounted) Single And 3phase
Standard
IS: 1248 / IEC 61010
Frequency
50 Hz ± 5%
System Voltage
230 V AC / 415 V AC (as applicable)
Measurement Range Options
- 0–300 V AC (Single Phase) - 0–500 V AC (Three Phase)
Display
3½ Digit / 4 Digit LED / LCD
Accuracy Class
Class 1.0 / Class 0.5 (as per requirement)b
Resolution
1 V / 0.1 V (as specified)
Input Burden
≤ 1 VA
Auxiliary Supply
Self-powered / 230 V AC ± 20% (as applicable)
Insulation Level
As per IS / IEC standards
Construction
Flush / Panel Mounting type
Terminals
Screw / stud type with cover
Cooling
Natural Air Cooled (NA)
Ambient Temperature
–10°C to +55°C
Mounting
Panel mounting with cut-out size (e.g., 96×96 mm / 72×72 mm)
Enclosure Protection
IP 20 / IP 21 (Front side, as per requirement)
Service Conditions
Indoor, suitable for tropical climate
Markings
As per IS / IEC (Range, Class, Serial No., Year, IS marking)
Routine & Type Tests
As per IS: 1248 (Accuracy, Insulation, Dielectric, Performance, etc.)
Payment Terms
T/T
Delivery Time
7 days
We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality Digital Voltmeters proudly made in India. Our Panel Mounted Digital Voltmeters are designed to meet IS: 1248 / IEC 61010 standards, ensuring reliable performance. Available in Single and 3-phase options, with a frequency of 50 Hz ± 5%, and system voltages of 230 V AC / 415 V AC. Choose from measurement range options of 0–300 V AC (Single Phase) or 0–500 V AC (Three Phase), displayed on a 3½ Digit or 4 Digit LED/LCD screen. Select your desired accuracy class and resolution for precise readings. Trust our Digital Voltmeters for accurate voltage measurements.
