20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Meter Type | Prepaid Single Phase / 3 Phase |
| Standards | IS: 13997 / IEC 62055-31 |
| Click to view more | |
Product Details
Accuracy Class
Class 1.0
Rated Current
10–60 A (LT System)
Voltage
230 V AC (Single Phase) / 415 V AC (Three Phase, 4 Wire)
Frequency
50 Hz ± 5%
Metering Features
- Active Energy (kWh)- Import / Export measurement (optional)- Tamper Detection: Magnetic, Reverse
Display
LCD / LED, 3–4 digits, energy and balance display
Communication (Optional)
Optical port / RS485 / RF / GSM (as required)
Auxiliary Supply
Self-powered from main circuit
Pulse Output
Optional, for energy monitoring
Operating Temperature
–10°C to +55°C
Humidity
Up to 95% RH non-condensing
Housing
Polycarbonate / Flame-retardant plastic, IP54 front
Terminal Type
Screw / Cage type terminals
Mechanical Durability
As per IS 13779 / IS 13997 standards
Overload Withstand
2 × rated current continuous, 10 × rated current for 1 second
Security Features
- Sealing provisions- Anti-tamper features (magnetic, reverse current, bypass detection, cover
Power Consumption
< 2 VA per phase
Marking
IS 13997, Class 1, Manufacturer Name, Serial Number, Year

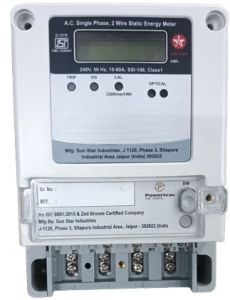

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality Prepaid Energy Meters originating from India. Our meters operate at 230V AC (Single Phase) / 415V AC (Three Phase) with a frequency of 50 Hz ± 5%. Designed for reliability, they can function in temperatures ranging from -10°C to +55°C. Compliant with IS: 13997 / IEC 62055-31 standards, our meters offer precise measurement with an Accuracy Class of 1.0. Suitable for both Single Phase and 3 Phase setups, they support a rated current of 10-60A in LT Systems. Features include Active Energy tracking, optional Import/Export measurement, and Tamper Detection using magnetic sensors. The meters come with an LCD or LED display for easy reading and monitoring.
