20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Type | WPL Current Transformer, Resin Cast |
| Standard | IS: 2705 (Part I–IV) / IEC 61869-2 (CT), IS: 1248 / IEC 60051 (Ammeter) |
| Click to view more | |
Product Details
System Voltage
415 V (LT Application, CT), 230 V AC (Ammeter)
CT Ratio
5+5 / 5 A (typical)
Core
Single Core (CT)
Accuracy Class
Class 1.0 (CT), Class 1.0 (Ammeter)
Burden / Meter Rating
5 VA (CT), 96×96 mm panel mount (Ammeter)
Dimensions (L × W × H)
90 × 80 × 50 mm (CT), 96×96 mm (Ammeter)
Frequency
50 Hz ± 5%
Continuous Thermal Current
1.2 × rated current (CT)
Short Time Current
As per IS: 2705 (CT)
Instrument Security Factorq
≤ 5 (CT)
Construction
Resin Cast, robust insulation (CT), Polycarbonate / Flame-retardant panel (Ammeter)
Terminals
Electrolytic copper, screw-type with terminal cover (CT), Screw-type (Ammeter)
Mounting
Panel / Base mounting (CT), Panel flush mount (Ammeter)
Insulation Class
Class E / B (CT), As per IS 1248 (Ammeter)
Ambient Temperature
–10°C to +55°C
Service Conditions
Indoor, suitable for tropical climate
Markings
As per IS: 2705 / IS 1248 (Ratio, VA, Class, Serial No., Year, IS marking)
Routine & Type Tests
As per IS: 2705 / IS 1248 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)

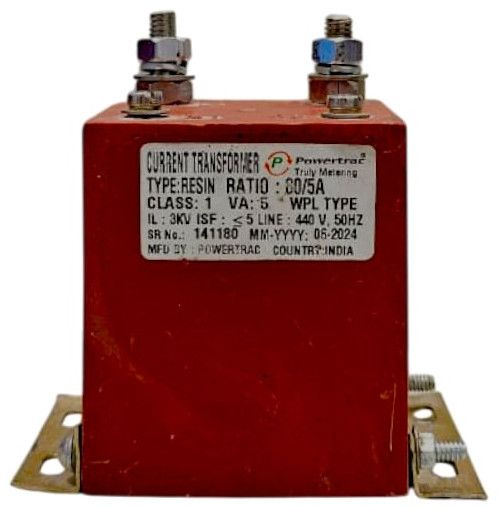

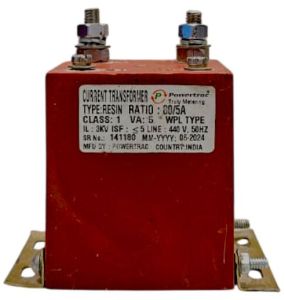

We are a leading Manufacturer, Exporter, Supplier, and Trader offering the Resin Cast WPL Current Transformer originating from India. This WPL Current Transformer complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, designed for 415V system voltage in LT applications. Featuring a CT ratio of 5+5 / 5A, single-core construction, and Class 1.0 accuracy, it ensures precise measurements with a 5VA burden. The compact dimensions of 90x80x50mm make it ideal for various applications. Trust this high-quality product for reliable performance in your electrical systems.
