20 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Type | Resin Cast |
| Shape | Rectangle,Ring |
| Color | Red |
| Click to view more | |
Product Details
Core Material
CRGO M4 grade or Nano crystalline as per accuracy demand
Current
primary upto 6000amp and secondary 1/5amp as per demand
Housing
resin
Current Rating
30-6000amp
voltage level
800 volt
Ratio
1600/5 A, 2000/5 A, 2500/5 A, 3200/5 A
Core
Single Core
Accuracy Class
Class 0.5s
Burden
15 VA (typical, customizable)
Window / Inner Dimensions (ID)
customized
Outer Dimensions (OD)
customized
Continuous Thermal Current
1.2 × rated current
Short Time Current
As per IS: 2705 (e.g., 25 × rated current for 1 sec)
Instrument Security Factor (ISF)
≤ 5
Construction
Resin Cast, robust insulation for Solar duty
Terminals
Electrolytic copper, screw-type, provided on shorter side with cover
Mounting
Suitable for busbar mounting (Rectangular Window Type)
Insulation Class
Class E / B
Ambient Temperature
–10°C to +55°C
Service Conditions
Indoor / Outdoor (suitable for tropical climate)
Markings & Tests
As per IS: 2705 (Ratio, VA, Class, Serial No., Year, ISI marking, Routine & Type Tests Polarity etc.
Frequency
50 Hz ± 5%
Standard
IS: 2705 (Part I–IV) / IEC 61869-2
Country of Origin
India
System Voltage
800 V (Solar Application)
Product Code
RC800V
Port
india
Payment Terms
T/T
Delivery Time
7 days

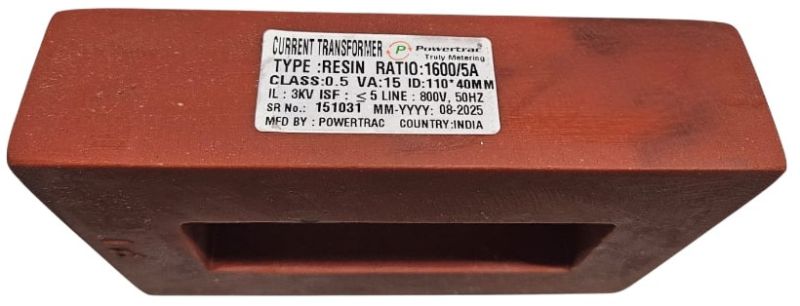

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality Solar Application Resin Cast Rectangular Current Transformer originating from India. This transformer complies with Standards IS: 2705 (Part I–IV) / IEC 61869-2, designed for System Voltage of 800 V in solar applications. Featuring a Ratio of 1600/5 A, Single Core construction, and Accuracy Class 0.5s, it offers precise measurements. With a Burden of 15 VA, typical Window / Inner Dimensions of 210 × 100 × 40 mm, and Outer Dimensions of 280 × 170 × 40 mm, this transformer is ideal for accurate current sensing in solar power systems.
